Hydraulic Clicker Die Cutting Press
Keyword:clicker die cutting press
Number:KY-HC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Hydraulic Clicker Die Cutting Press
Description
1).Suitable for all kinds of nonmetal materials.
2).Two-hand operate the switch, the cutting head rotates freely, easy operation.
3).Equipped with automatic oil supply and lubrication system,reduce wear and extend service life.
4).Cutting travel is automatically controled by the time meter, after the height of the die cutting.
All models cliker die cutting press parameters
Model No. | KYSC-12 | KYSC-16 | KYSC-20 |
Cutting force | 12Ton | 16Ton | 20Ton |
Work table size | 400*800mm | 410*900mm | 500*1000mm |
Swing arm size | 350*450mm | 350*500mm | 350*550mm |
Motor power | 0.75kw | 1.1kw | 1.5kw |
Voltage | 380v 3phase 50hz | 380v 3phase 50hz | 380v 3phase 50hz |
Stroke adjustment range | 5-65mm | 5-75mm | 5-75mm |
Hydraulic oil capacity | 32L | 38L | 50L |
Machine size | 800*880*1250mm | 900*850*1350mm | 960*950*1600mm |
Package size | 810*940*1450mm | 960*900*1550mm | 1000*980*1430mm |
Machine weight | 340kgs | 470kgs | 700kgs |

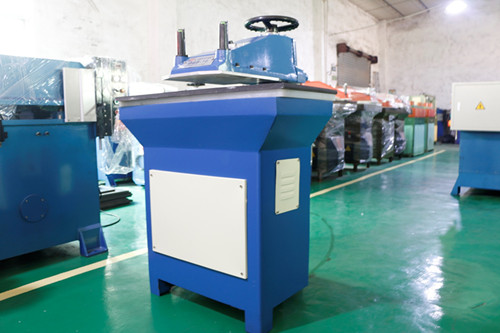

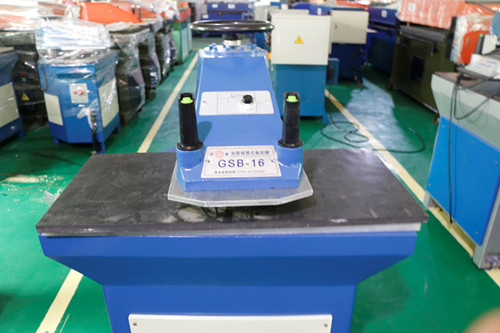

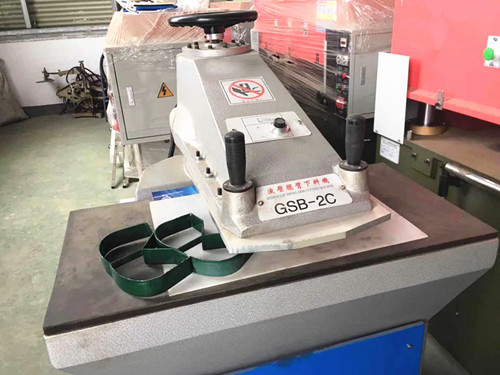

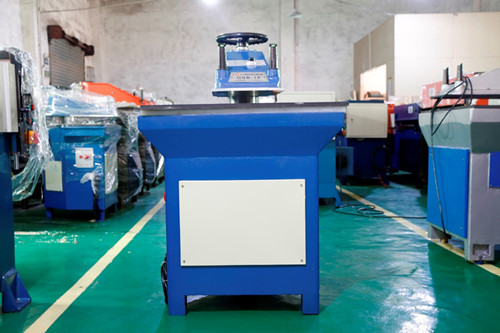

Clicker Cutting Press Photos:
About us:
Yancheng Kaiyi Machine company is located in Wolong Road, Dagang Town, Yancheng City,
Jiangsu Province, China. we have been producing lamination machines,
cutting machines, embossing machine and other textile machines for eight years.
We have exported many lamination machines to Russia, India,Pakistan, Indonesia....,
we can produce machine base on your requirments, If you wanna know more details
of the machine, welcome to contact us!
