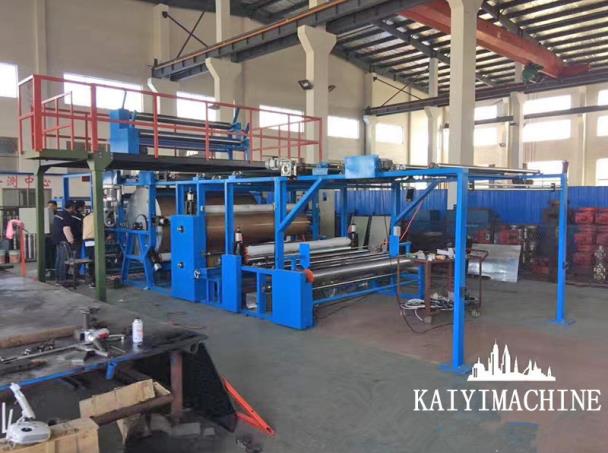

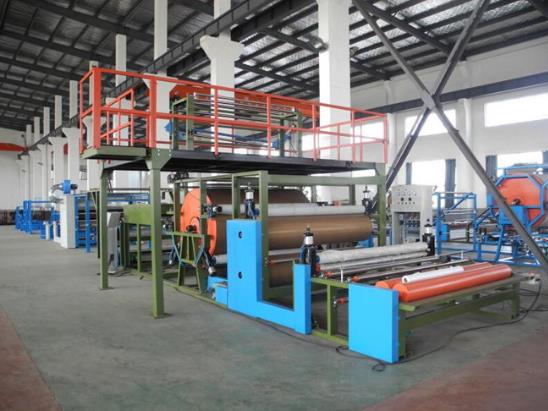

Home Textile Lamination Machine

Keyword:home textile lamination machine

Number:KY-PG

Home Textile Lamination Machine,Home Textile Laminating Machine

Features:

1. Home textile lamination machine can laminate many kinds of fabrics for different kinds industries,

for example: garment, sofa, mattress, curtain...etc.

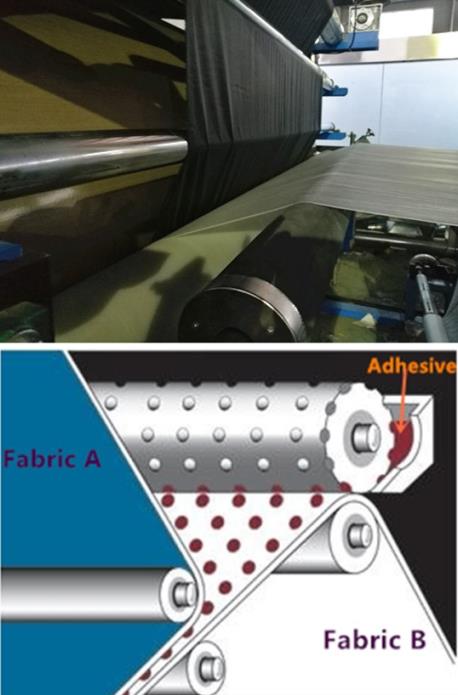

2. Glue point transfer technic is adopted to make the glue into points and then transfer them to the inside

fabric and then laminate the inside fabric with the outside fabric.

3. Fabric are firmly bonded and products are soft, comfortable, washable and breathable.

4.PLC system with touch screen and modular designed structure, this laminating machine

can be easily and simply operated.

5. Fabric and film openers also make materials feed smoothly and flatly.

6. It has edge cutting device, film laminating device, blowing fabric device,

Automatic temperature control system, heating system, user can select one group heating mode or

both, can reduce the energy consumption;

Surface of heating drum is coated with Teflon paper

Cooling drums

Counting meter device

Applications:

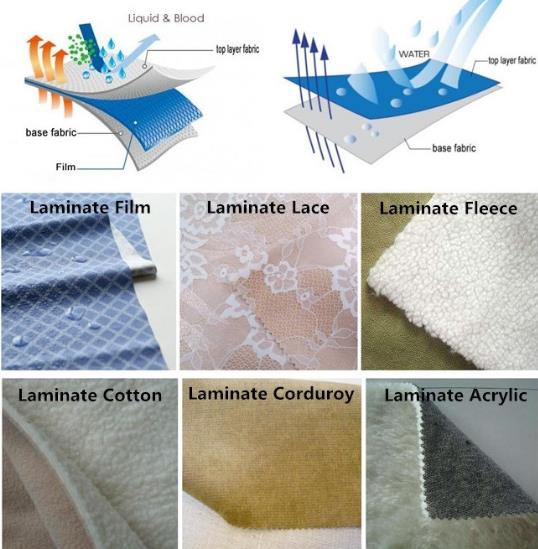

Home Textile Lamination Machine laminate fabric, nonwoven, spandex, lycra, oxford, lace, peach skin,

ployester,velvet, knitting fabric, suede,nylon,mesh, fleece, satin, jacquard, chiffon...etc.

Film (Membrane) such as PU, TPU, PTFE, PE, BOPP, OPP, PET, PVC...film.

Luggage materials, such as eva,pvc, polyester.

Diving fabric, such as SBR, CR.

Home textile machine is widely used in garment, sports cloth, medical products, mattress, curtain, sofa.

Technical Parameters

Model:	KY-PG
Machine Name	Home Textile Lamination Machine,Home Textile Laminating Machine
Fabric Width:	1800mm
Heating Drum Height :	1500mm
Total Power:	50kw
Running speed:	20-40 m/min
Net Weight:	8500 KGS
Dimension:	13000 x 2500 x 2500 mm
Origin	China
Brand	KAIYIMACHINE
Delivery Time	25days
Delivery Terms	FOB,CIF
