Product Introduction:

Hydraulic Plastic Cutting Machine

Features:
1.two-tank, precision four-post structure of the self-balancing connecting rod

which can maintain the equal pressure of each cutting position.
2.Series B machine has super long stroke setting for adapt to the super

 thick material and super high die cutters.
3.When pressing the cutting board and touching the cutter, it can cut automatically

 and slowly to make that no size error between the uppermost layer and lowermost

layer of the cutting plastic.
4.The unique setting construction, combine with the cutting knife and cutting height

which can make high-speed stroke simple and accurate.
5.Central automatic lubrication systems which can ensure the precision and durability

 of the machinery.

 Plastic Cutting Machine Specification:

Model

KYYC-40T

KYYC-50T

Cutting Force

40Tons

50Tons

Stroke Range

50-250mm

50-250mm

Cutting Area

610*1250mm

710*1250mm

Motor Power

4kw

4kw

Machine Dimension

1985*1050*1420mm

1985*1050*1400mm

Machine Weight

2200kg

2000kg

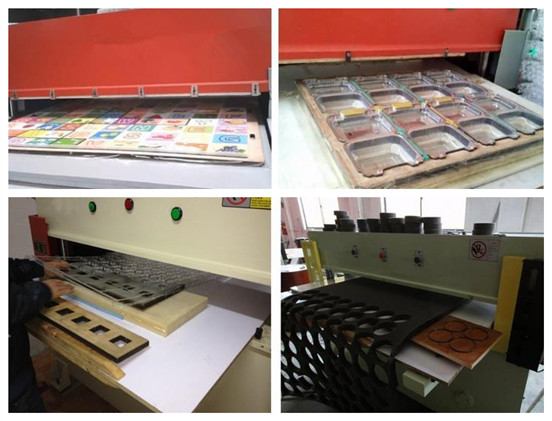

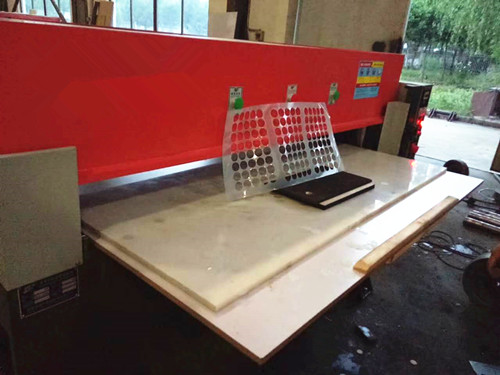

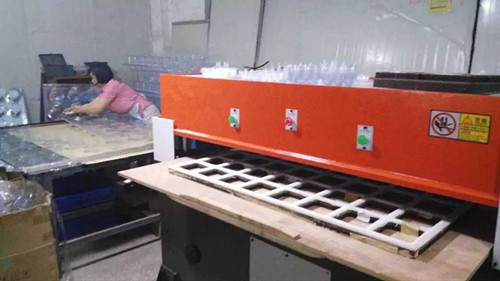

 Photos:
