Product Image:
暂无图
Product Introduction:

12T,16T,20 T Swing Arm Clicker Press

Features:

1.Cutting many typs Non-mentallic materials

2.Cutting materials in single or multiple layers one time.

3. Quiet, easy to operate

4.Swing beam (arm) allows full access and visibility

Parameters

Model No.

KYSC-12

KYSC-16

KYSC-20

Cutting force

12Ton

16Ton

20Ton

Work table size

400*800mm

410*900mm

500*1000mm

Swing arm size

350*450mm

350*500mm

350*550mm

Motor power

0.75kw

1.1kw

1.5kw

Voltage

380v 3phase 50hz

380v 3phase 50hz

380v 3phase 50hz

Stroke adjustment range

5-65mm

5-75mm

5-75mm

Hydraulic oil capacity

32L

38L

50L

Machine size

800*880*1250mm

900*850*1350mm

960*950*1600mm

Package size

810*940*1450mm

960*900*1550mm

1000*980*1430mm

Machine weight

340kgs

470kgs

700kgs

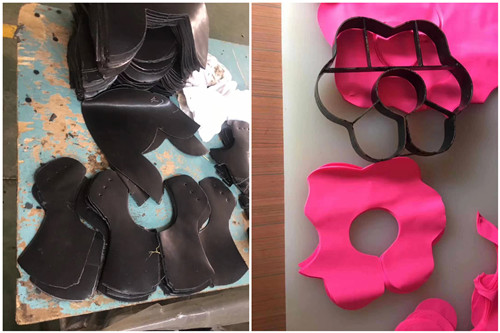

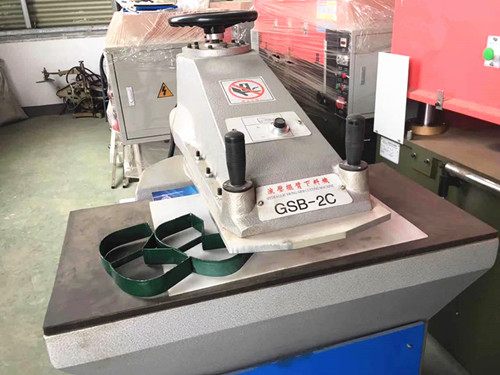

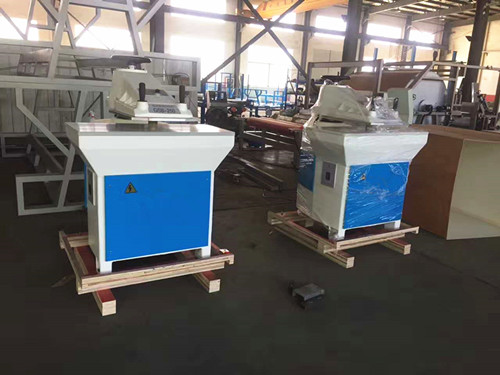

Swing Arm Clicer Press Photos:




About us:

Yancheng Kaiyi Machine company is located in Wolong Road, Dagang Town, Yancheng City,

Jiangsu Province, China. we have been producing lamination machines,

cutting machines, embossing machine and other textile machines for eight years.

We have exported many lamination machines to Russia, India,Pakistan, Indonesia....,

we can produce machine base on your requirments, If you wanna know more details

of the machine, welcome to contact us!
