Product Introduction:

Water Based Glue Lamination Machine

Usage of water based glue lamination machine

Laminating fabrics with other types fabrics together by water based glue, final laminated fabrics is widely used in

family carpet, shoes, insoles, car seat, car floor mat, floor mat industry.

Spare Parts and Operation

 1.    Feeding Frame

Putting base raw fabric and second raw fabric as drawing, adjusting tensioner according by raw fabric material, it’s for getting best tension.

 2.    Gluing Device

Adjusting glue dosage by different fabrics material, adjusting method is turning screw, rotate down to add glue.

 3.    Power and Transmission Device.

This machine is droved by adjustable-speed motor; heating roller, gluing device, traction device and winding device is droved by gear motor.

Rotation control instrument can adjust working speed, turning down is speeding up.

 4.    Mesh Belt Automatic Deviation Rectifier

After machine start working, the belt will pass many transmission shafts with the change of fabrics, the belt may deflect, once deflect happen,

 operators should change it quickly, the machine has automatic deviation rectifier. In operation, it is forbidden to move the Infrared retriever.

Water Based Glue Lamination Machine Specification:

Machine Name

Water Based Glue Lamination Machine

FOB Price

$8900-$20000



Working Width

1650mm(customize)

Function

Laminating sponge with other fabrics

for shoes,carpet, car seat products

Laminating Speed

800-1500m/hour

Power

48kw

Size

6.2*2.5*2.5m

Weight

3500kgs

Origin

China, Yancheng City

Production Time

20 days

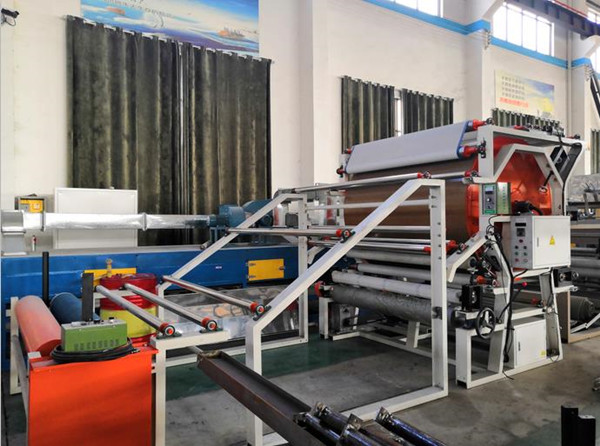

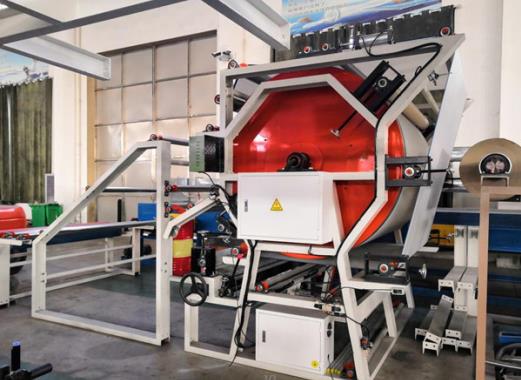

Water Based Glue Lamination Machine Photos:

water glue lamination machine2.jpg

water glue lamination machine1.jpg

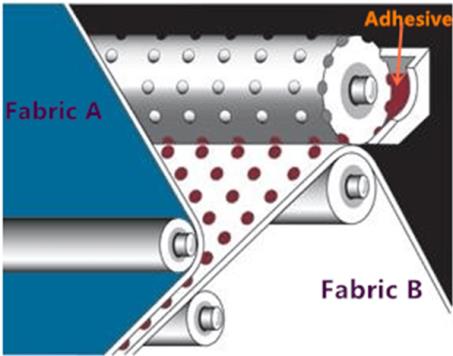

Water Glue Lamination Theory


Final Fabrics

final fabrics.jpg

More details Please contact us:
