Different Types Fabrics Lamination Machine

Different Types Fabrics Lamination Machine

Fabrics Lamination Machine Application:

Ramine fabric lamination machine using polyurethane adhesive(Pu glue mix with DCP, accelerator promoter, benzyl alcohol as final glue to laminate garment, home textile industry’s fabrics.

The fabrics laminated by this machine have the characteristics such as: soft,

good texture, water-proof, ventilate and anti-dry cleaning.

Fabrics Lamination Machine Structures:

1. Raw Fabric Infeeding Device

2. Glue Dot Transfer Device

3. Lamination Device

4. Cooling Device

5. Traction Device

6. Winding Device

7. Feeding Raw Fabric Device

8. Power Transmission System

9. Electrical Apparatus Control System

10. Temperature Control:

Like:

Ramine+Fabric

Ramine+Fabric+Fabric

Ramine+Fabric+Film

Ramine+Film+Fabric

Ramine+Film

.....

Spare Parts Information:

1.SIEMENS Motor

2. Mitsubishi Frequency Transformer

3. Schneider Electronic Components

4. OMRON Central Relay

5. OMRON Overtravel-Limit Switch

Size

Glue Roller Width: 2000mm

Heating Roller Size:2000*1500mm

Final Fabric Max Width: 1800mm

Power: 22kw/Hour

Laminating Speed: max 45m/ min

Overall Size: 11000*2600*2450mm (L*W*H)

Weight:7500kgs

5. OMRON Overtravel-Limit Switch

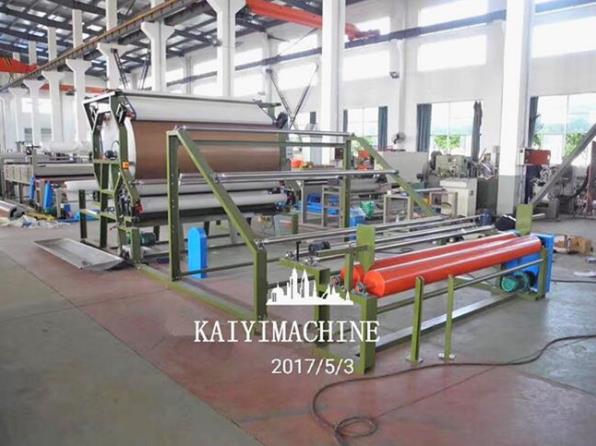

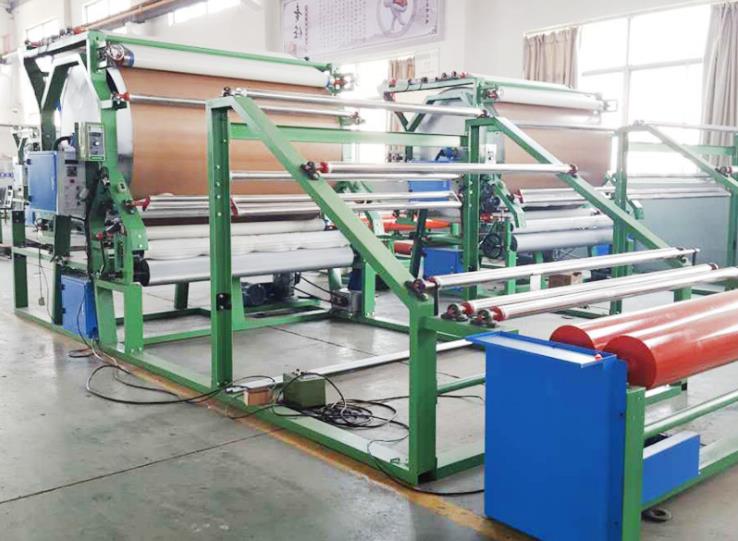

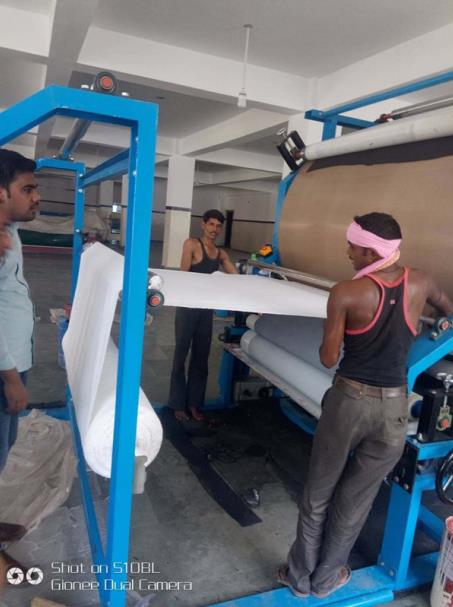

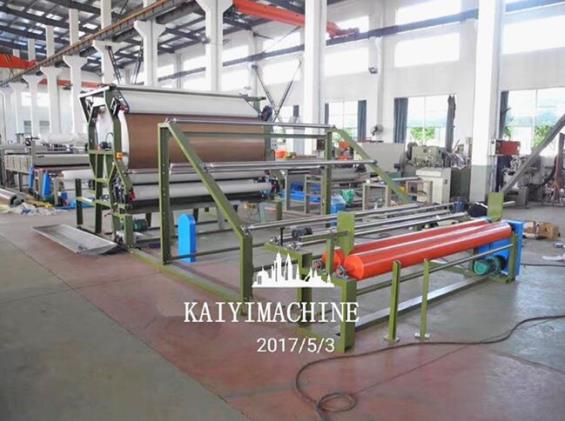

Fabrics Lamination Machine Photos:

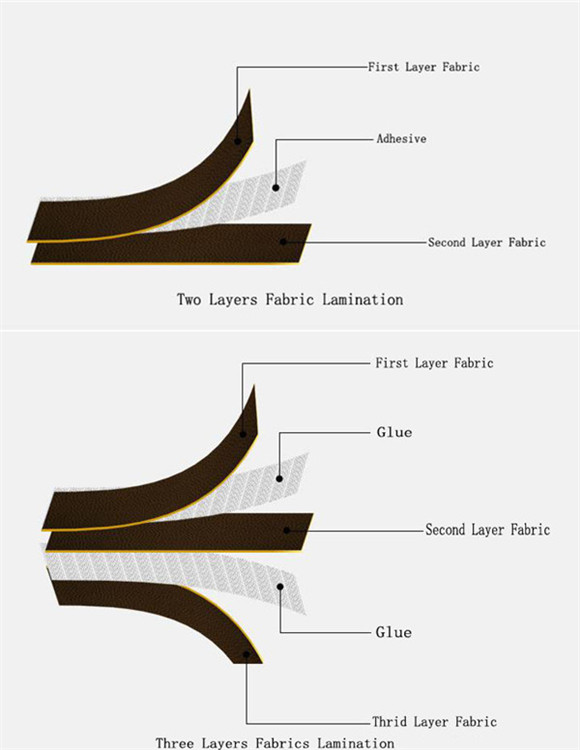

How to laminate Fabrics Together

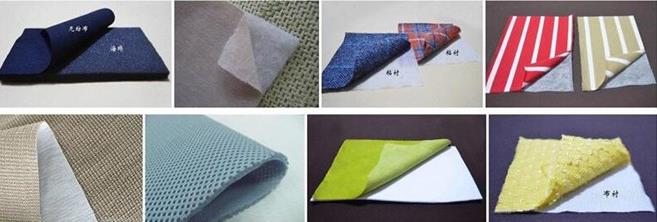

Application

About us:

Yancheng Kaiyi Machine company is located in Wolong Road, Dagang Town, Yancheng City,

Jiangsu Province, China. we have been producing lamination machines,

cutting machines, embossing machine,quilting machine and other textile after processing machines for eight years.

We have exported many machines to Russia, India,Pakistan, Indonesia....,

we can produce machine base on your requirments, If you wanna know more details

of the machine, welcome to contact us!
