Terry Fabric,Terry Lamination Machine

Details:

1.Terry fabric lamination machine is widely used in garments, sports products, mattress, bed cover,sofa,

military fabrics and other industries.

2.Solvent based glue laminate fabrics, let them bonded very firmly, washnable.

3.DCP with acetone let fabrics soft and hands feeling well and breathable.
4.Film unwinding device is installed on the machine, so terry lamination machine can laminate

many kinds film like bopp film, pvc film, tpu film, pu film, pet film...etc.

5.Edge cutting and absorbing device make sure the final fabrics’ edge are good, and this

set device saves labor costs, increase production output.
6 Equiped with Simens motors, Mitsubishi transformer, schneider electric.

7.Applicatble fabric types: denim, cotton, wool, linen, lycra,model,polyester, nylon,acrylic,lambswool,knitted fabric,

fleece, velvet,lace, mesh,spandex,TC, corduroy,oxford, canvas,suede,linen,terry,sponge,foam..etc.

Structure：

1. Automatic Edge Alignment Unwinding Fabric Device

2. Glue Dot Transfer Device

a. Main Glue Wheel Glue Roller Dia. 240mm (28 mesh lozenge)

3. Laminating-Heating Device

a.Main Heating Roller dia. 1500*2000mm (30pcs heating tube, each tube power is 1.5kw)

4. Water-Cooling Device

5. Traction Equipment

6. Winding Device

7. Unwinding Device

8. Electrical System

Spare Parts Information:

1.SIEMENS Motor

2. Mitsubishi Frequency Transformer

3. Schneider Electronic Components

4. OMRON Central Relay

5. OMRON Overtravel-Limit Switch

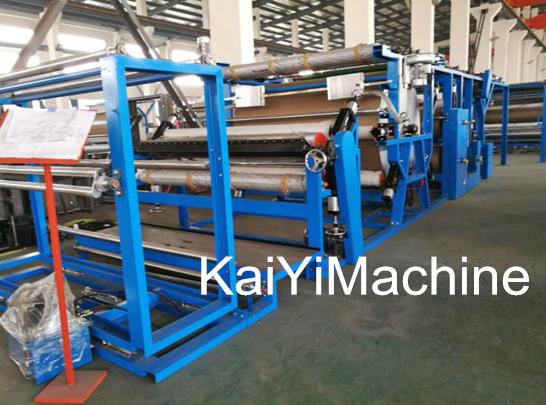

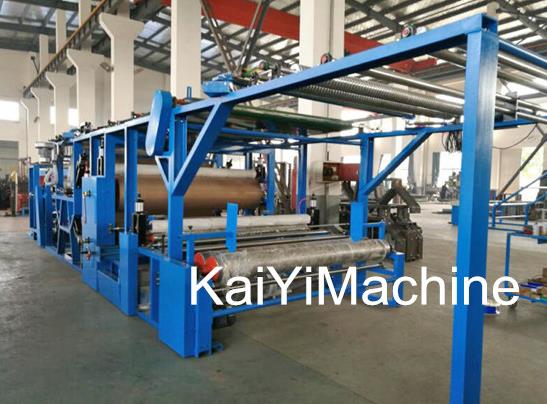

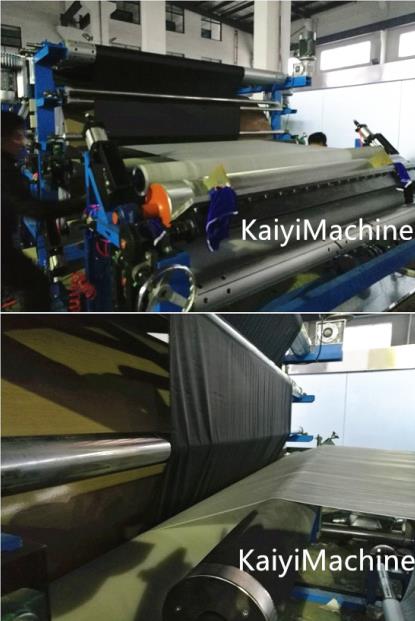

Photos:

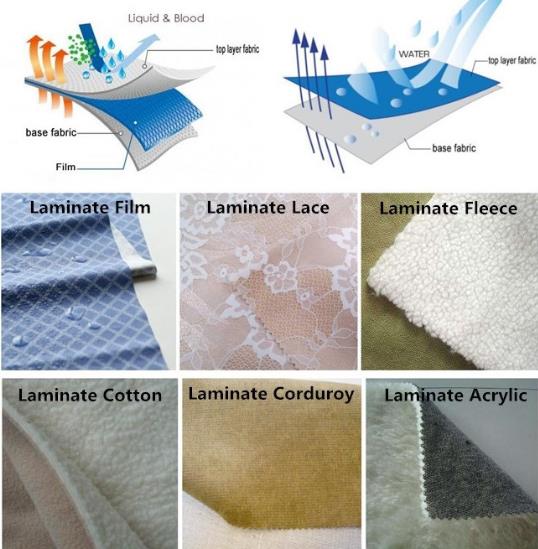

Application：

About us:

Yancheng Kaiyi Machine company is located in Wolong Road, Dagang Town, Yancheng City,

Jiangsu Province, China. we have been producing lamination machines,

cutting machines, embossing machine,quilting machine and other textile after processing machines for eight years.

We have exported many machines to Russia, India,Pakistan, Indonesia....,

we can produce machine base on your requirments, If you wanna know more details

of the machine, welcome to contact us!
